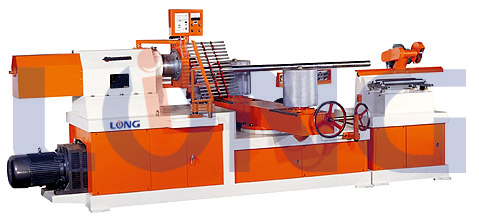

LLJ-2TD Paper Tube Winder
Features:
1.Winding inside diameter reaches from 50mm to 500mm , the thickness up to 30mm. (Needed a auxiliary body) 2.Adopt spiral bevel gear, changeable angle, more stable.
3.Assemble the imitate Japanese newest wax lubrication system, firm the friction between tubes and mandrel, easily control tubes' spiral seam, improve the tubes qualities, maintain the original color of the bottom-ply. 4.The diameter of drum reaches to 350mm, enlarge the distance and strengthen the tensile. Improve the hardness, the strength and the pressure-proof of the ribbons. Long beam design for using long belt, improve smoothness . Multi-plies paper frame. 5.Beam is manufactured by aging treated cast-iron, durable.
6.Expandable flange mandrel, taper core rob. Hard drums, durable.
7.High-speed and low-resistance cutting system.
8.Changeable speed design.
9.Circuit and electric appliances designed and installed by the international standard.
Specifications :
Applicable thickness: 2 -15mm (up to 30mm used auxiliary device)
Length of tubes: 1 -4mm
Machinery Speed: up to 15m /min
Power of main motor: 18.5KW
Size of cutting system: 1200 1050 1650 (mm)
Size of main machinery: 4100 2600 2100 (mm)
